Average savings on a 40km ride, undulating hills with 800 meters of total elevation gain and 40 km/h relative wind.
RDC version bare frame weighs 685 grams. Standard version bare frame weighs 780 grams.
17mm seatpost deflection rate improves comfort by 23% compared to the Exceed.
Compared to Exceed, the overall stiffness increased by 5%, and stiffness-to-weight ratio has improved by 14.5%.
3-year of revolutionizing

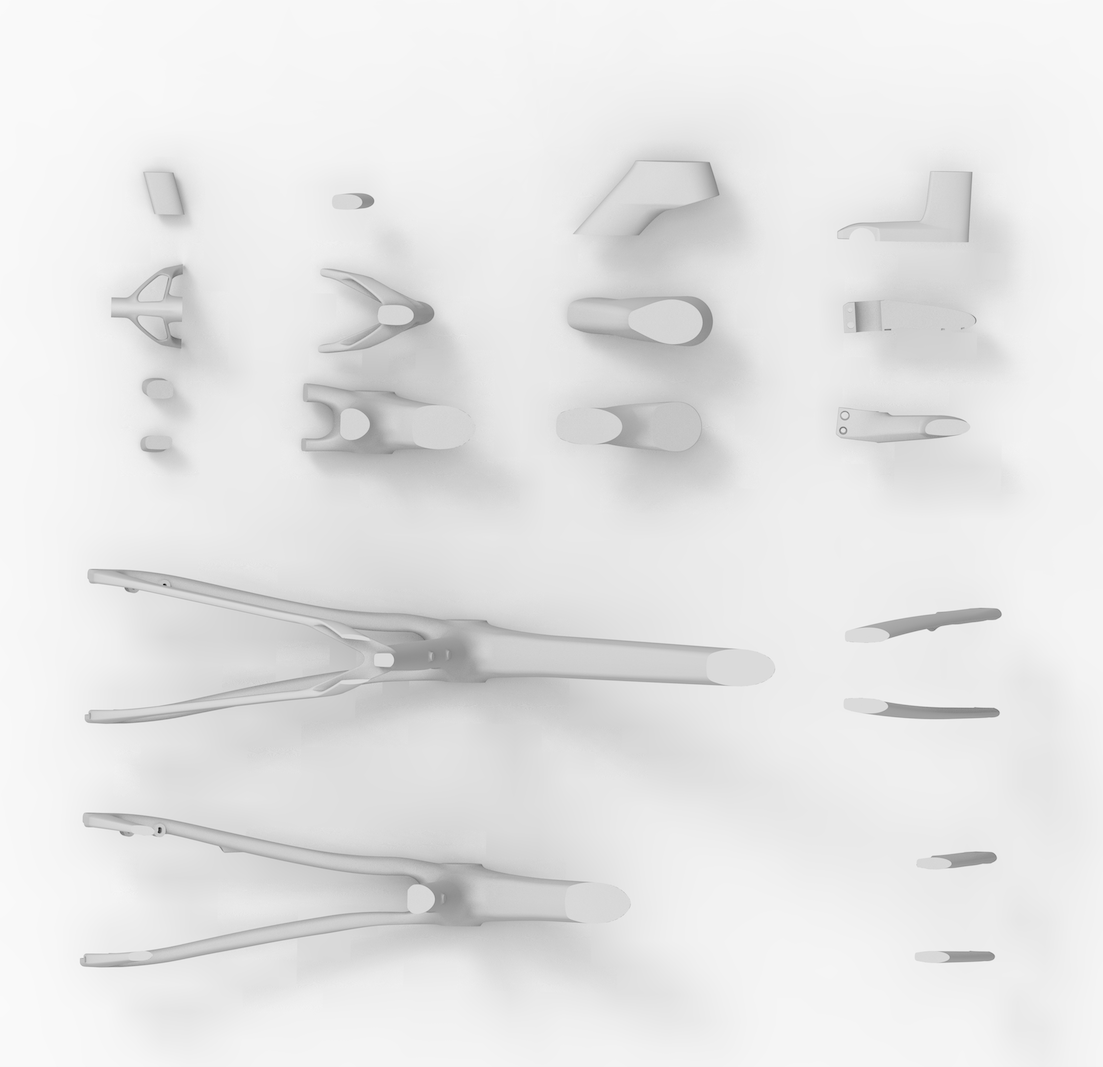

We introduced the concept of”Sectionalized design” in the Spear model, where each frame section serves a specific purpose.
6 advanced materials from TeXtreme and Mitsubishi Chemicals, including the next-level ultra-hight modulus Pitch-based carbon fiber ever used in the bike industry. 350 pieces of carbon fabrics stacked to its position, delivering ultra-hight stiffness and lightweight agility.
All together, consolidate with True-One-Piece molding technology, no joint, no weakness, and a truly integrated frame body.
Computational Fluid Dynamics（CFD）
Based on Computational Fluid Dynamics (CFD) simulations for developing and iterating tube shapes, it is regarded as an important tool in Spear’s design updates.CFD analysis enables rapid direction clarification and quantifies benefits, reducing trial and error in the development process.
even faster than aero bikes

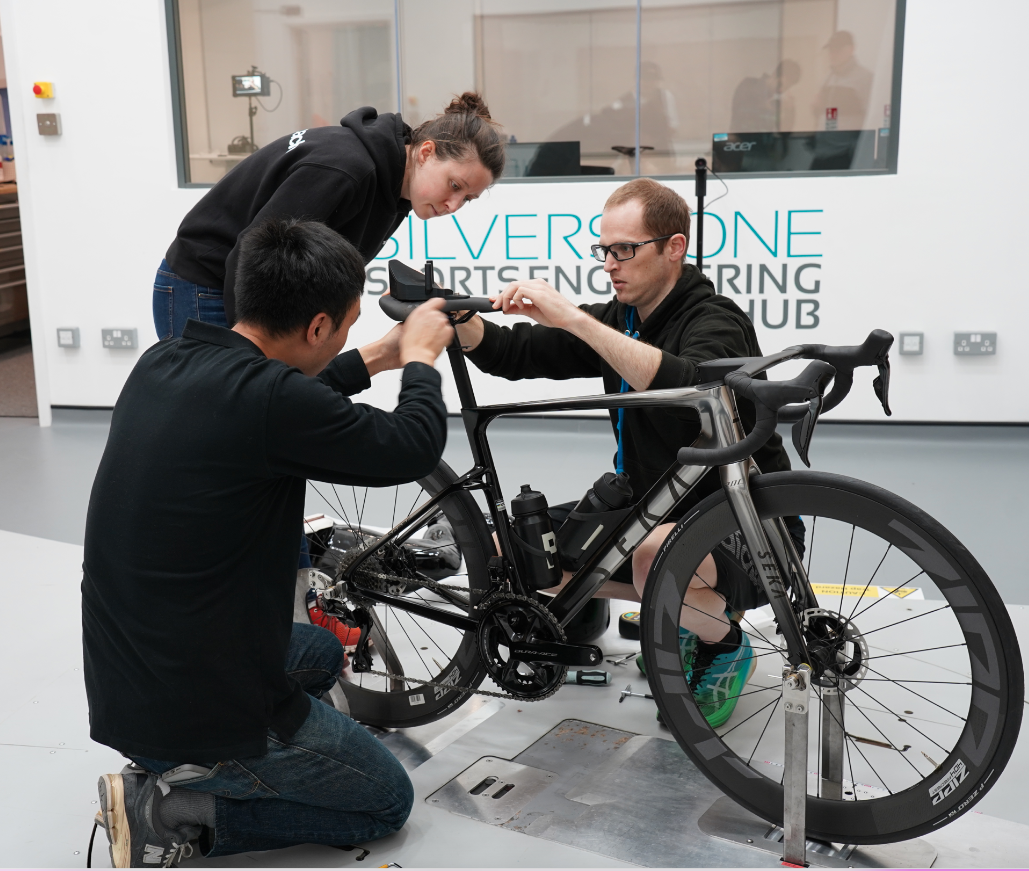

We collaborated with the AeroCoach team to conduct extensive wind tunnel tests at Silverstone Sports Engineering Hub in the United Kingdom, simulating real-world riding conditions and optimizing using 280,000 sets of data.
Spear It leaps in aerodynamic benefits. Compared to the Exceed, it reduces drag by 6 watts on a 40-kilometer undulating ride with 800 meters of total elevation gain and 40 km/h relative wind, shaving 15.27 seconds from the finish time.

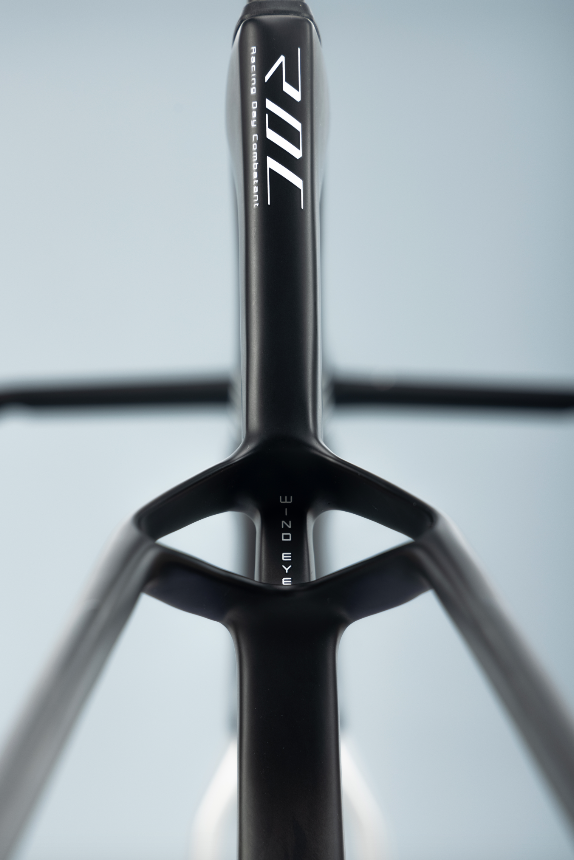

Wind Eye
What makes Spear stand out from all other bikes.
The iconic Wind Eye structure expelled turbulence air created from pedaling and suppressed the low-pressure zone. Saves you additional 2.66 watts at a relative wind speed of 40kph.
More Aerodynamic
more comfortable

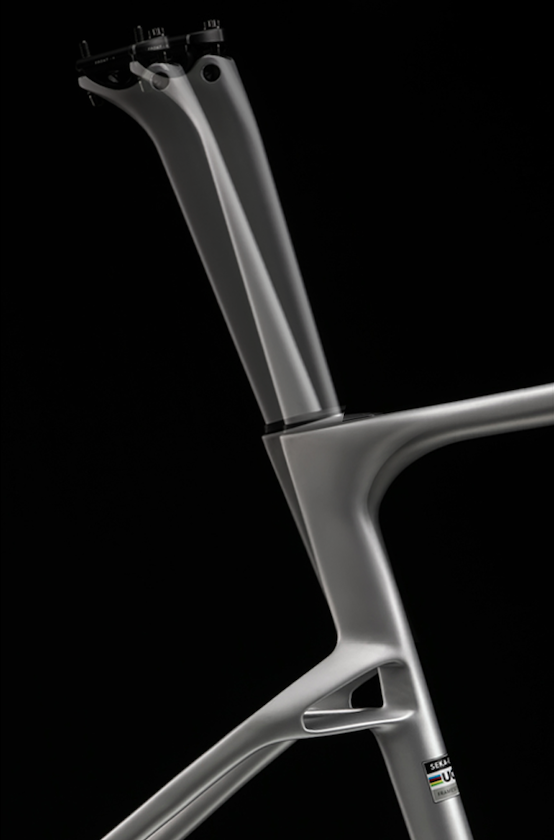

17mm maximum seatpost deflection distance effectively reduces severe vibrations from rough roads while mitigating road surface bumps. Compared to the Exceed, the Spear increases vertical compliance by 23%.
Pure Riding Pleasure
All new

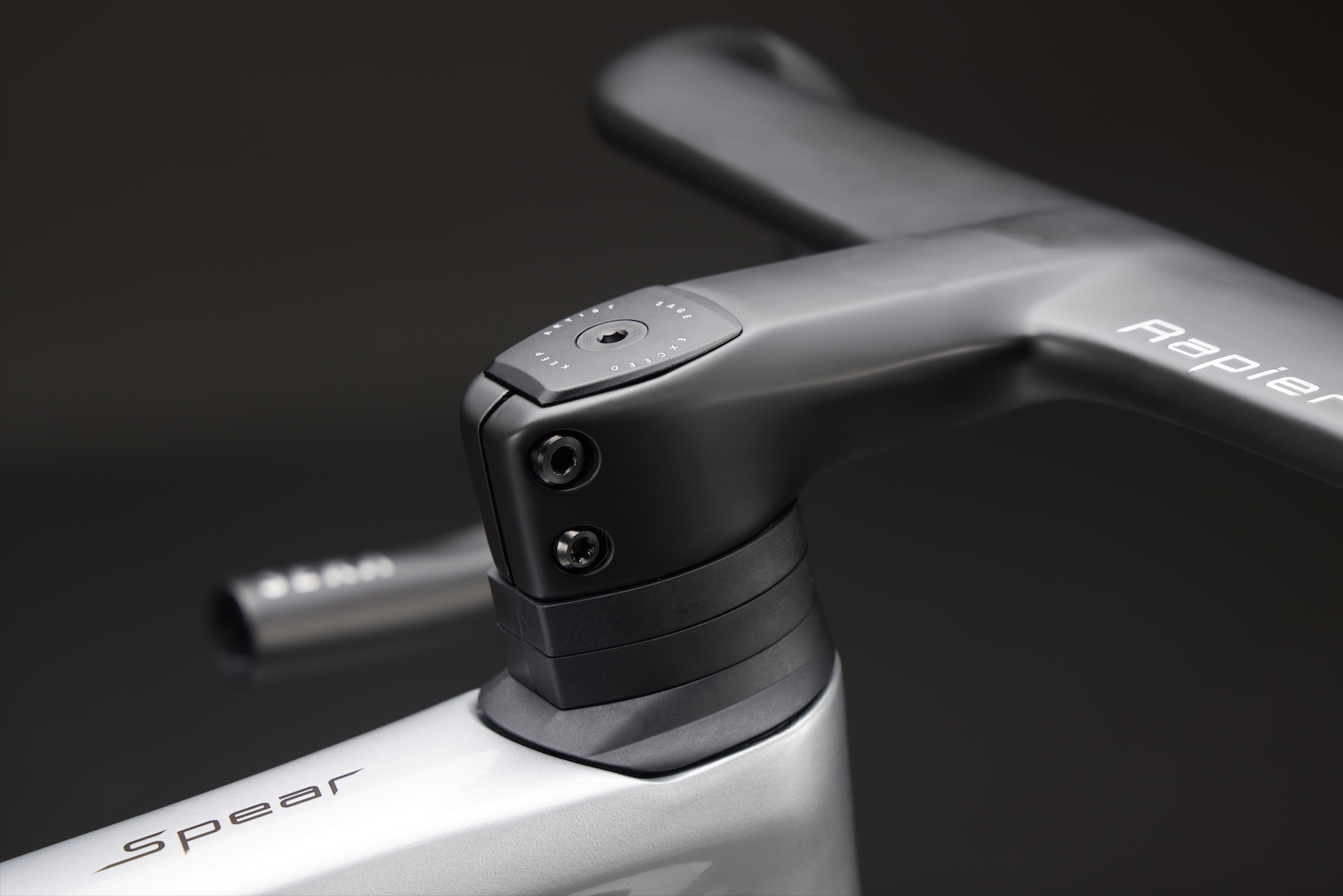

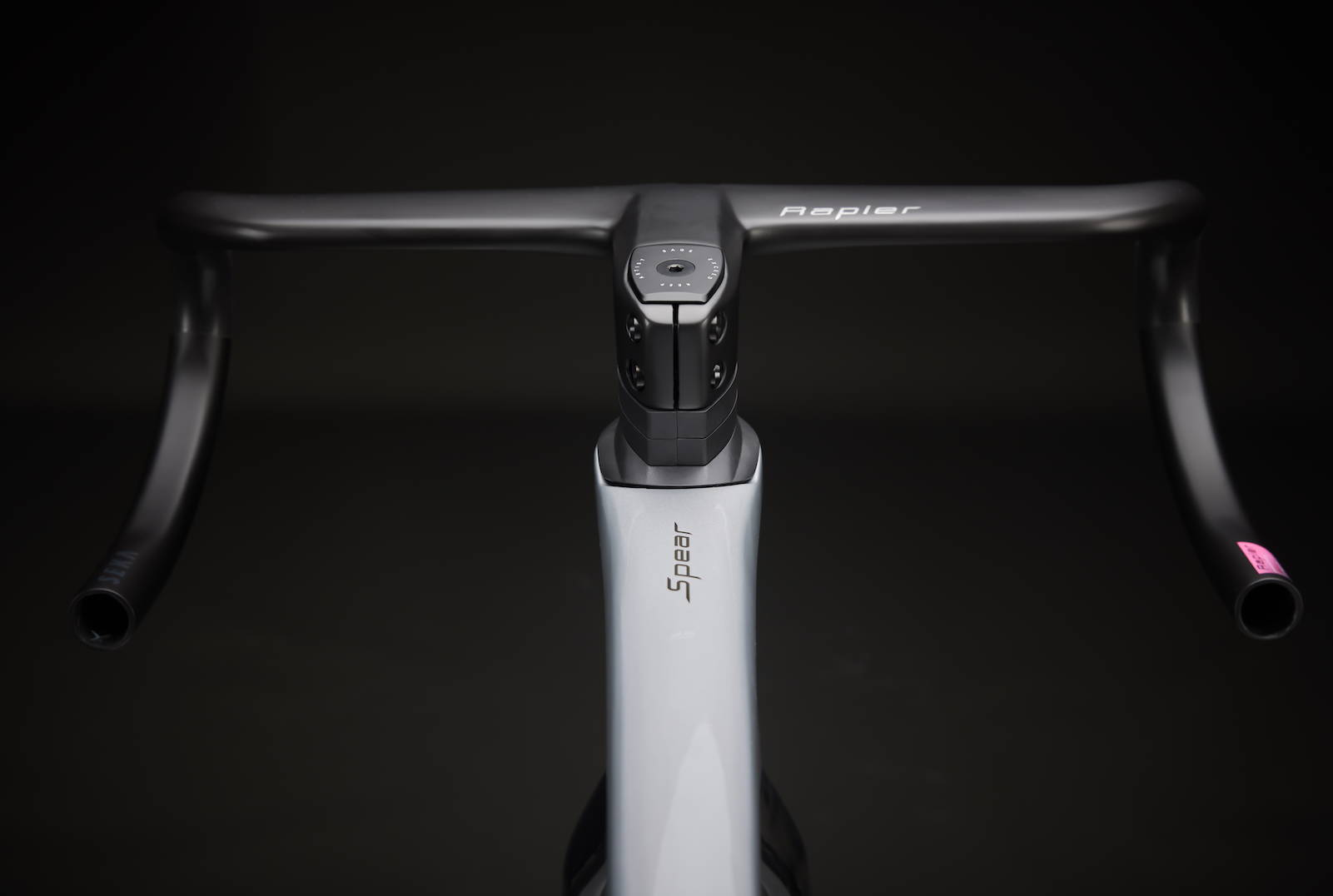

Rapier integrated handlebar
Utilizing True-One-Piece molding technology, designed to a perfect match for Spear. 5mm narrower on hood, 25mm flare on the drop, incredible ergonomic grip, and tailor built for combat field racers. Compared to the Exceed Gen 2 monocoque handlebar, stiffness increases by 5.2%. Weight decreases by 20g, with a weight of only 310g (375mm-100mm, without hardware).
Optimized In The Wind Tunnel. Get the pure aerodynamic benefits and the most enjoyable riding experience. -6° stem angle, 76mm reach, 127mm drop, paired with a newly optimized fully internal routing system. 19 different specifications for versatile fitting.
5+2

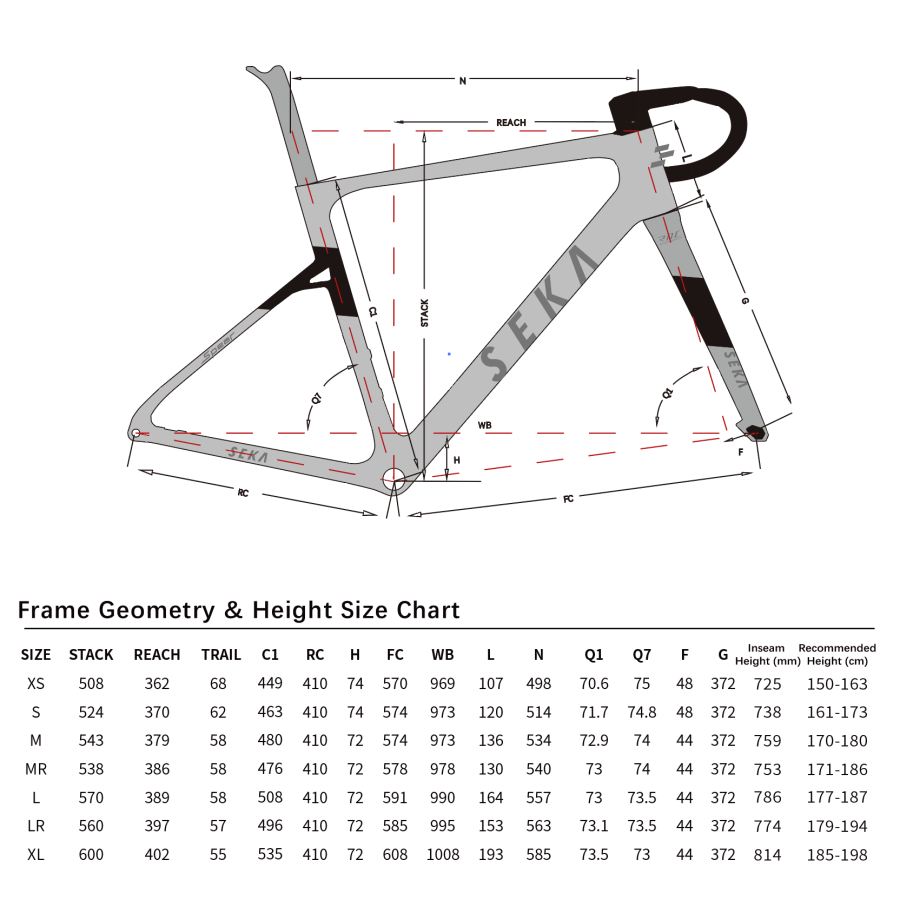

Non-linear geometry
5 Regular sizes, 2 Racing sizes

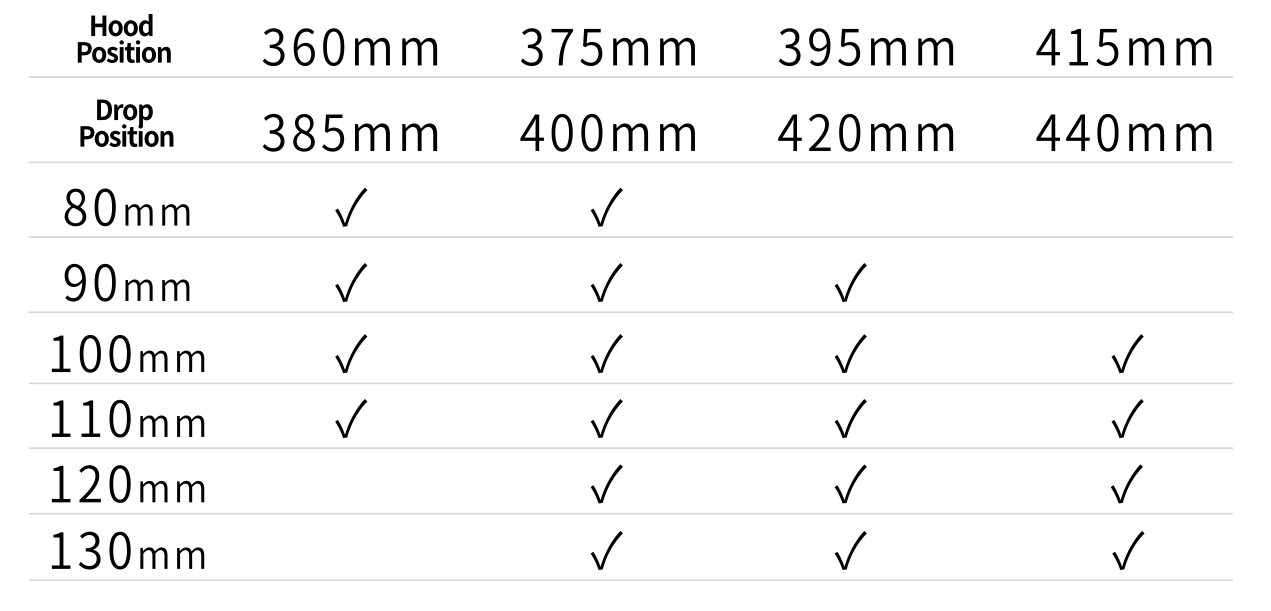

19 size options for handlebars and 2 seatposts setback options
To accommodate different riding styles
Inseam Height is measured at 50mm in front of the bottom bracket center, with a 680mm tire outer diameter.
Botton braket
BSA threaded bottom bracket, 68mm width
Headset bearing
Upper&Lower: 49.5*40.5*6.5*45/45°
Axle
Front:12X100mm thru-axle
Rear:12X142mm thru-axle
Max tire width(actual)
32mm
Saddle Camp
Max:7*11mm
Frame weight
RDC:685g bare frame
Standard:780g bare frame
Cable Routing fully internal
support both mechanical and electronic groups.
Fork
Spear 44 or 48 for its compatible frame size
Steerer tube diameter
28.6mm(1-1/8 inch)
warranty
Limited lifetime warranty
Bottle cage
Spear aero bottle cage
brake type
Disc only
seatpost
380mm or 300mm length 0mm or 15mm offset
Wheel size
700c
UCI Approved
