215N/mm bottom bracket stiffness, 143N/mm head tube stiffness.
M-size RDC frame with accessories, Charcoal Matte Black.
Perfect fit with Exceed Integrated Handlebar GEN 2.

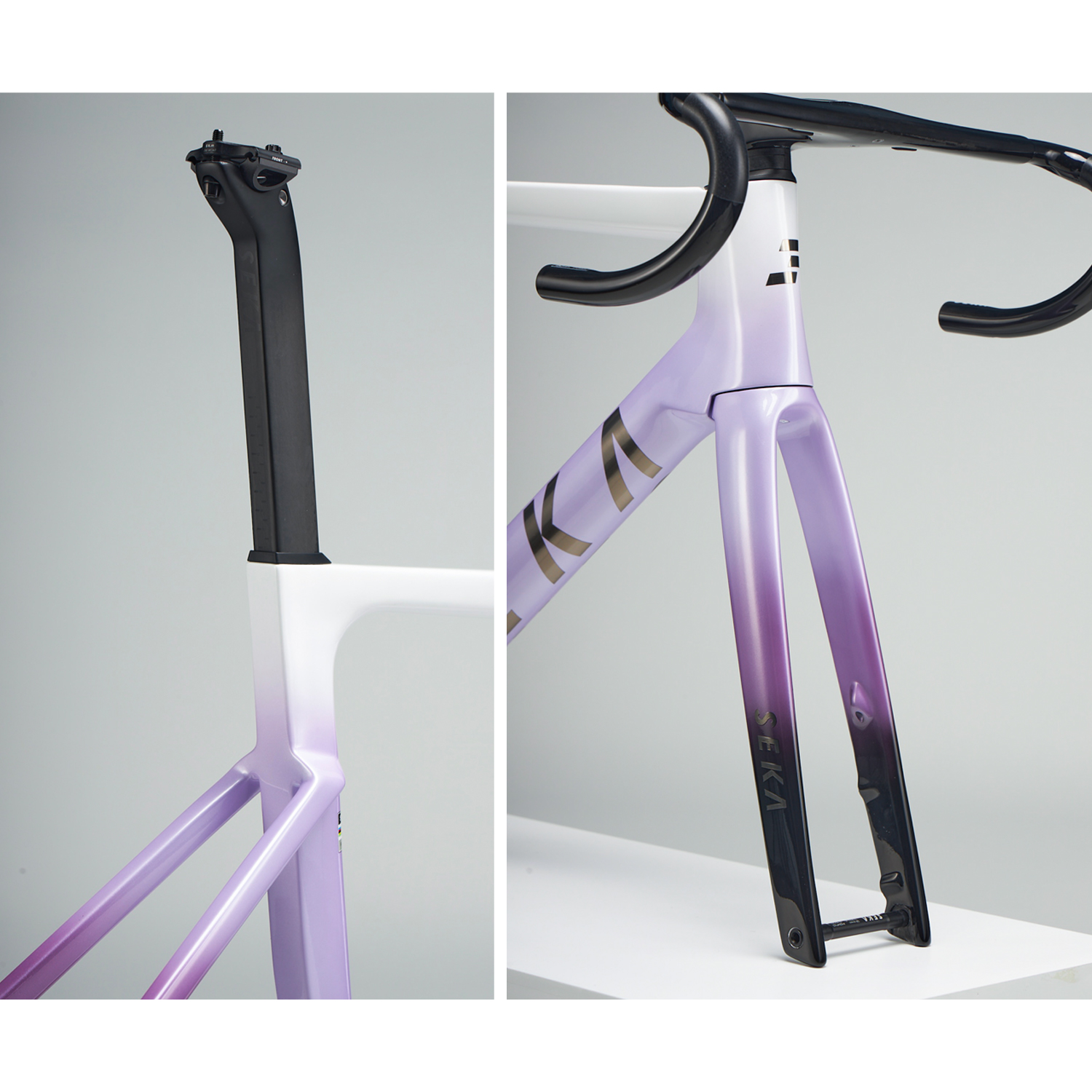

0mm or 15mm offset seatposts available.
Crystal Finish
Why settle for ordinary when you can choose your road bike to express your personality?
The elegance of glossy shine, or the sleek matte look, the choice is yours.

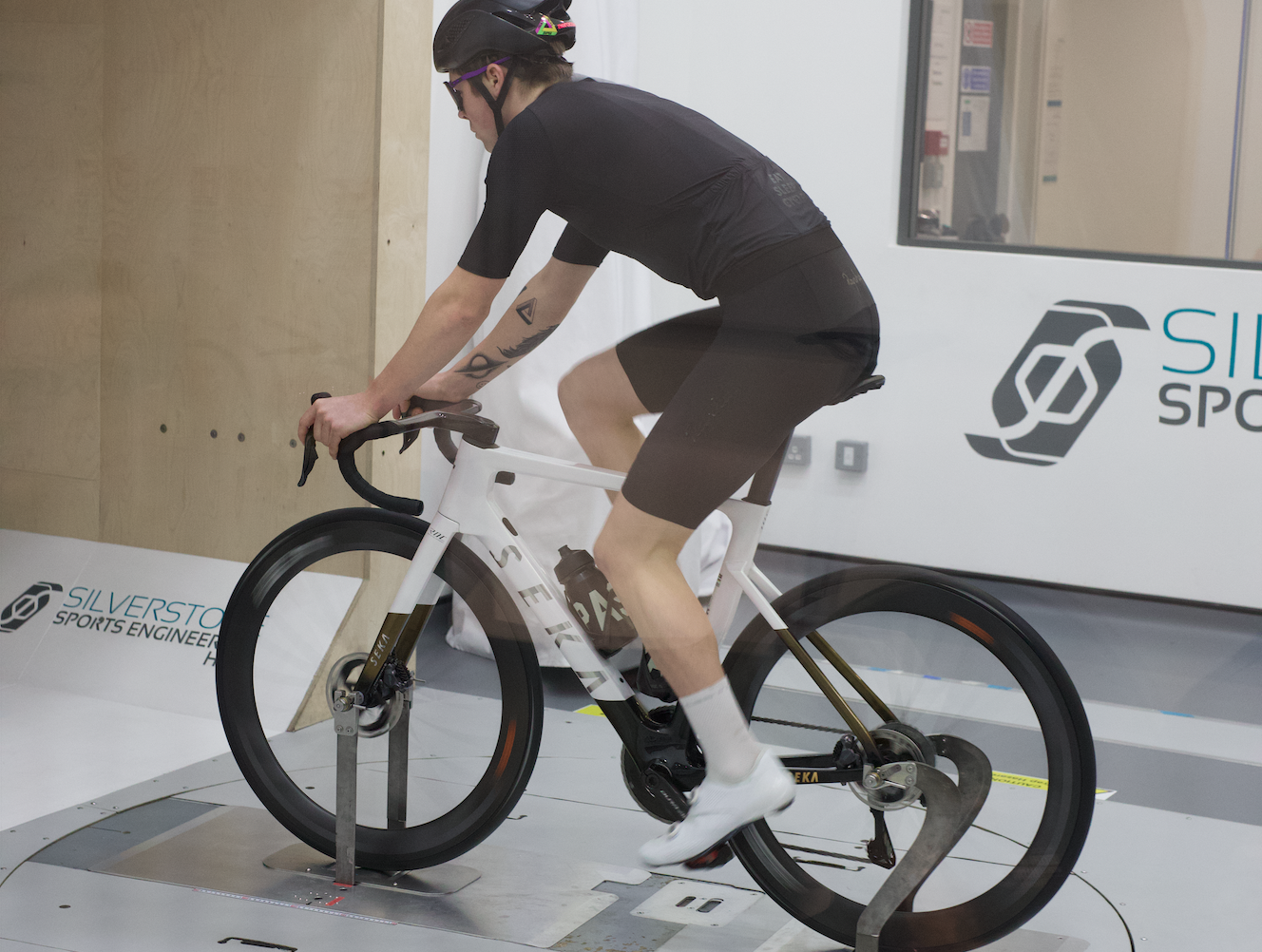

All-round Aerodynamics
Using the NACA Kammback airfoil shapes, not only provides incredible crosswind control but also maximizes aero benefit within the UCI regulations.
Exceed ultimately has excellent aerodynamic performance. Exceed outperforms in maximum power delivery and consistently helps you in setting new speed records.
tested Strength
Tested with 1200N at 120 revs per minute, totaling 100,000 revs. loaded pedal fatigue, as well as horizontal and vertical force fatigue. It outperforms the ISO 4210-6 safety standard for racing bikes by 20%.
Every Exceed is handcrafted, thoroughly inspected, and is covered by a limited lifetime warranty.

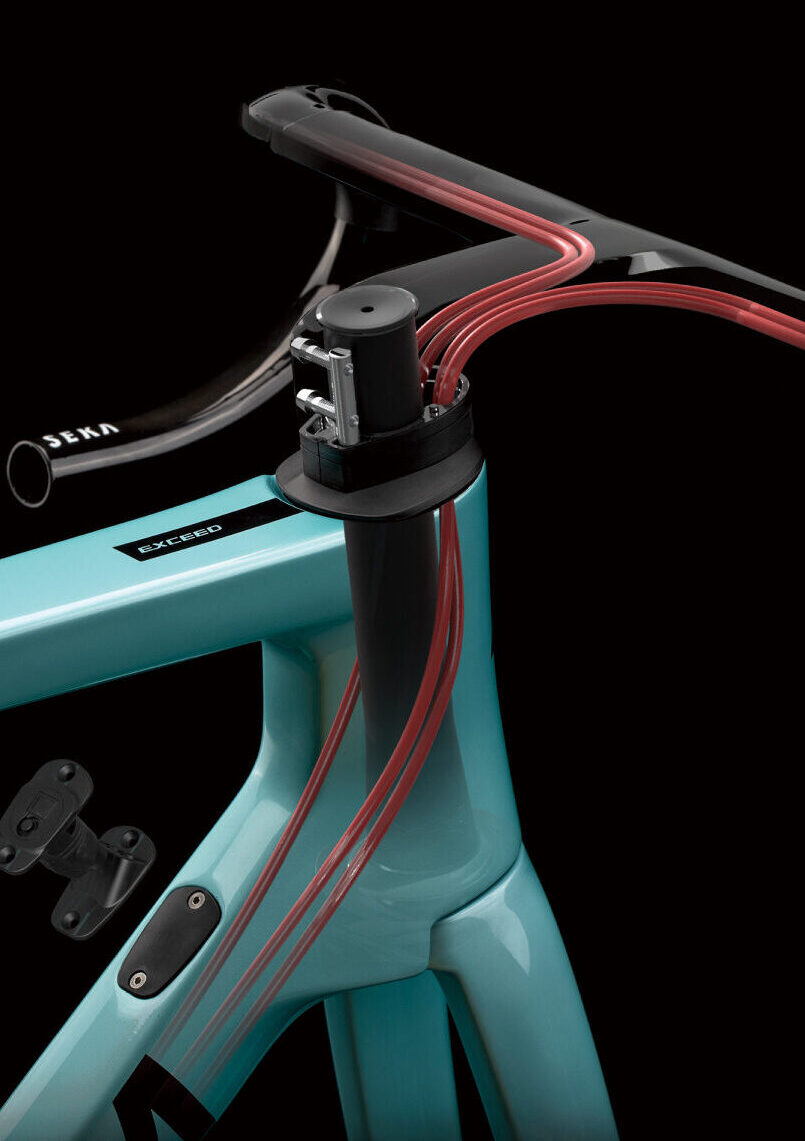

Functional Simplicity
Hassle-free fully internal routing system for both mechanical and electronic systems. Clean, aerodynamic, and smooth shifting, it has it all
Comparison with the standard system
The front cable space has increased by 4.5mm, and smooths the curve of the headset cable angle by 10 degrees.
Tangible Lightness
Exceed offers two frame set versions, optimized through material and stacking configurations to ensure rigidity while carefully approaching weight limits.
Exceed RDC（Charcoal Matte Black, M Size）
Exceed Standard（Ink Black, M Size）
The above weights, including paint and accessories (front and rear derailleur hanger, chain stay protector). Weights will vary depending on the paint color and finish, ranging from 20g to 100g.
Precision
Under Control

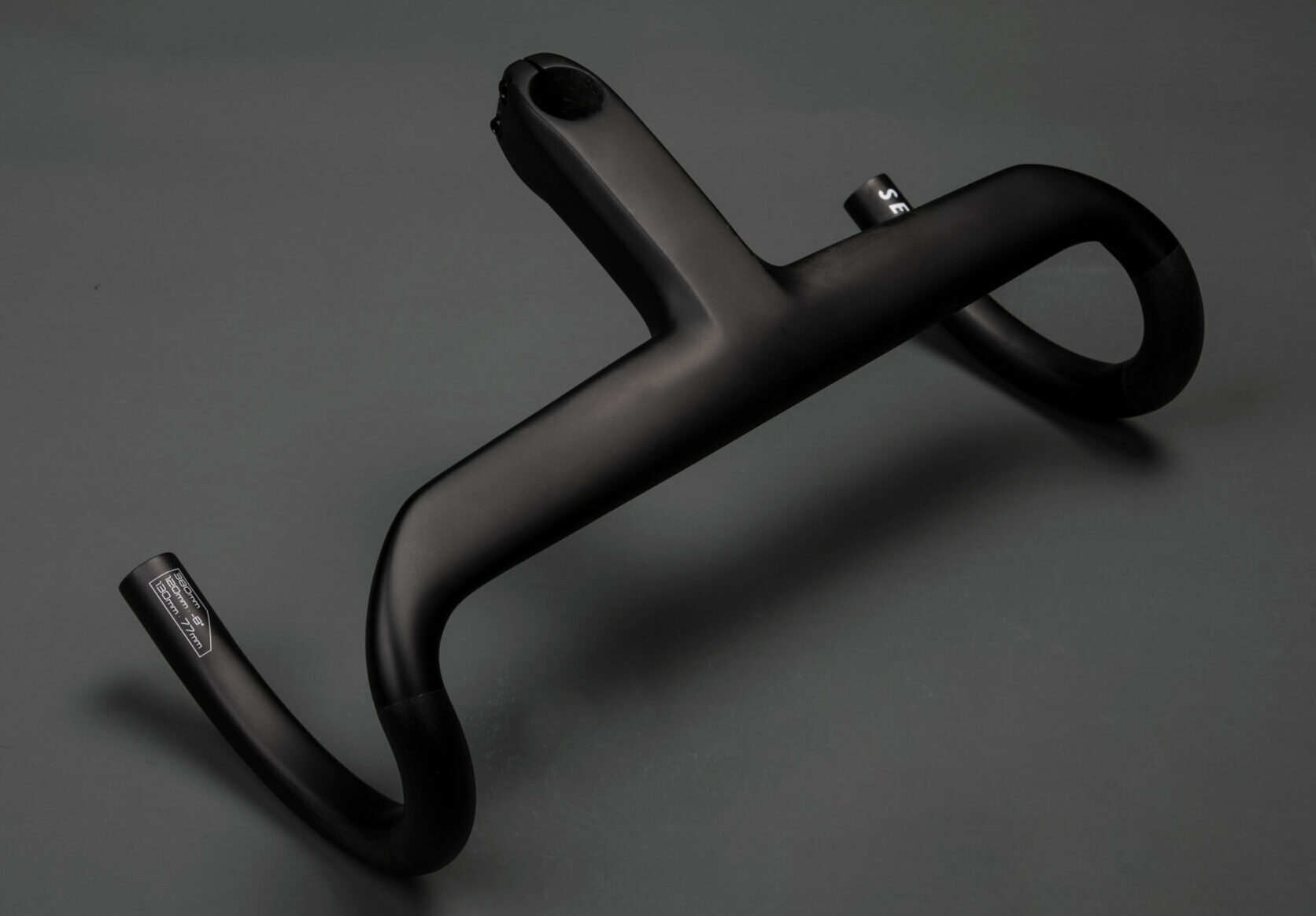

Fully integrated aero handlebar paired with Exceed. Gen2 handlebars are now updated with a redesigned ergonomic grip and aero tube shape, as well as increased stiffness with an ultra-lightweight of 325g and a redesigned computer mount for a cooler look! 3D-printed adapter spacers are available for installation on other headset systems.

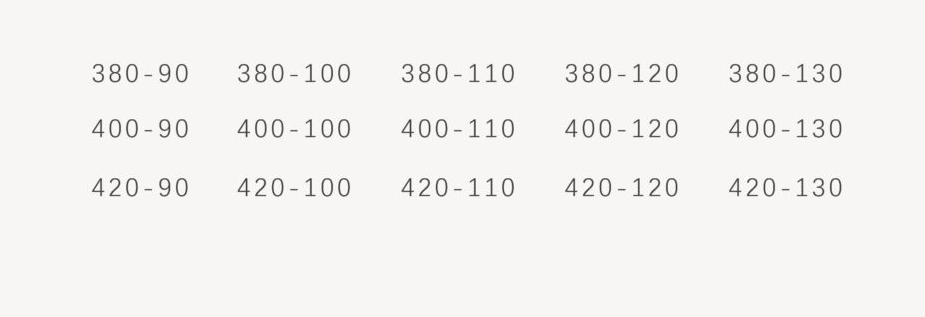

Handlebar Specifications

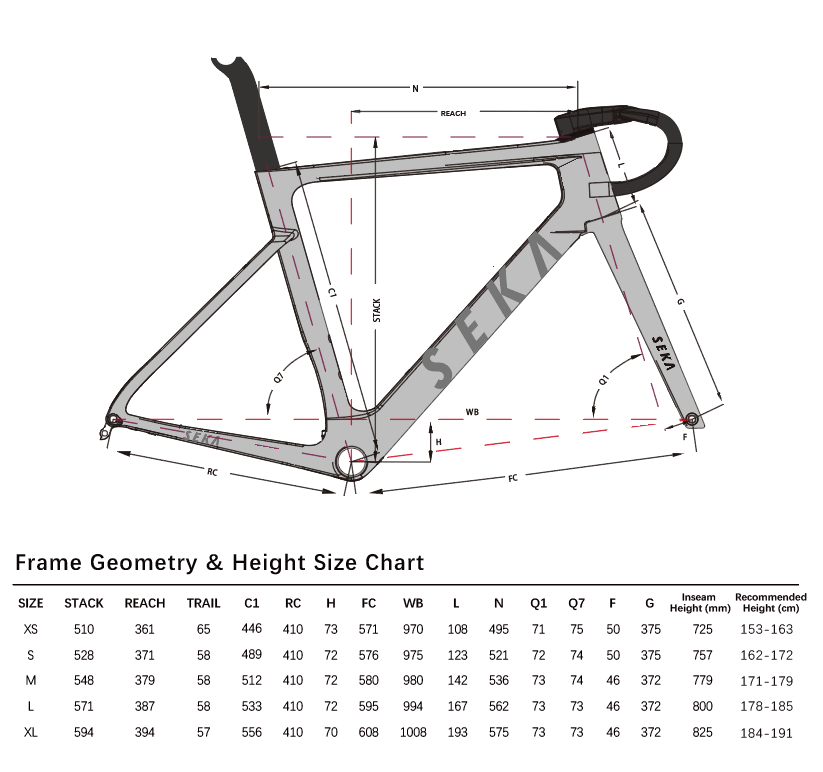

Exceed Geometry Chart
Inseam Height is measured at 50mm in front of the bottom bracket center, with a 680mm tire outer diameter.

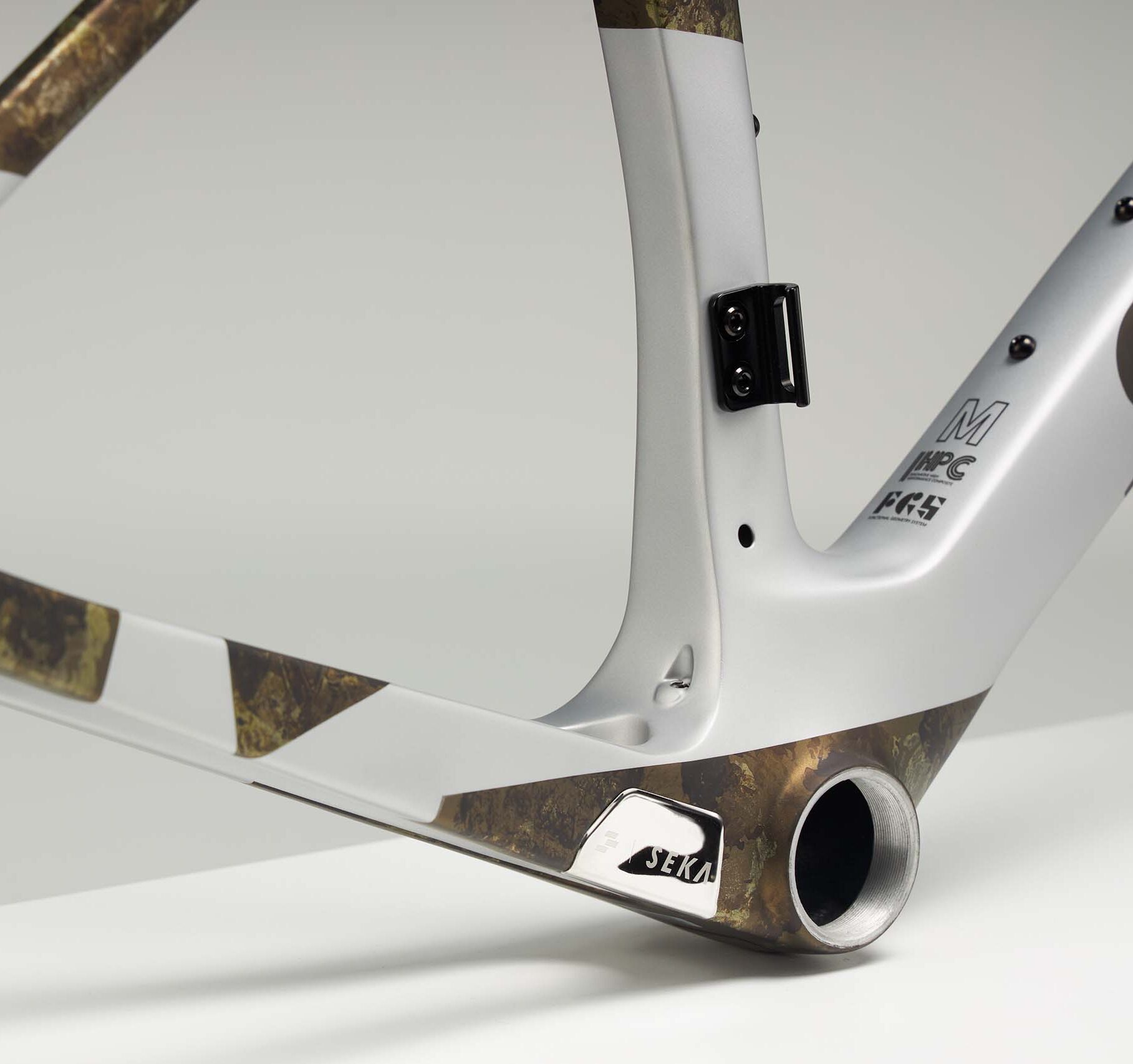

Bottom Bracket
Threaded Bottom Bracket, T47 Inboard, 85.5mm width
Headset Bearing
Up & Lower：52mm*40mm*7mm*45/45 ACB
Axle
Front: 12 x 100mm thru-axle Rear: 12 x 142mm thru-axle
Cable Routing
Fully Internal Support both mechanical and electronic groupset
Fork
Exceed 44 or 48 for its compatible frame size
Steerer Tube Diameter
28.6mm(1-1/8 inch)
Warranty
Limited lifetime warranty
Saddle camp
Max:7*11mm
Max tire width(actual)
30mm
frame weight
RDC: 775g bare frame Standard: 953g bare frame
Wheel Size
700c
Brake Type
Disc only

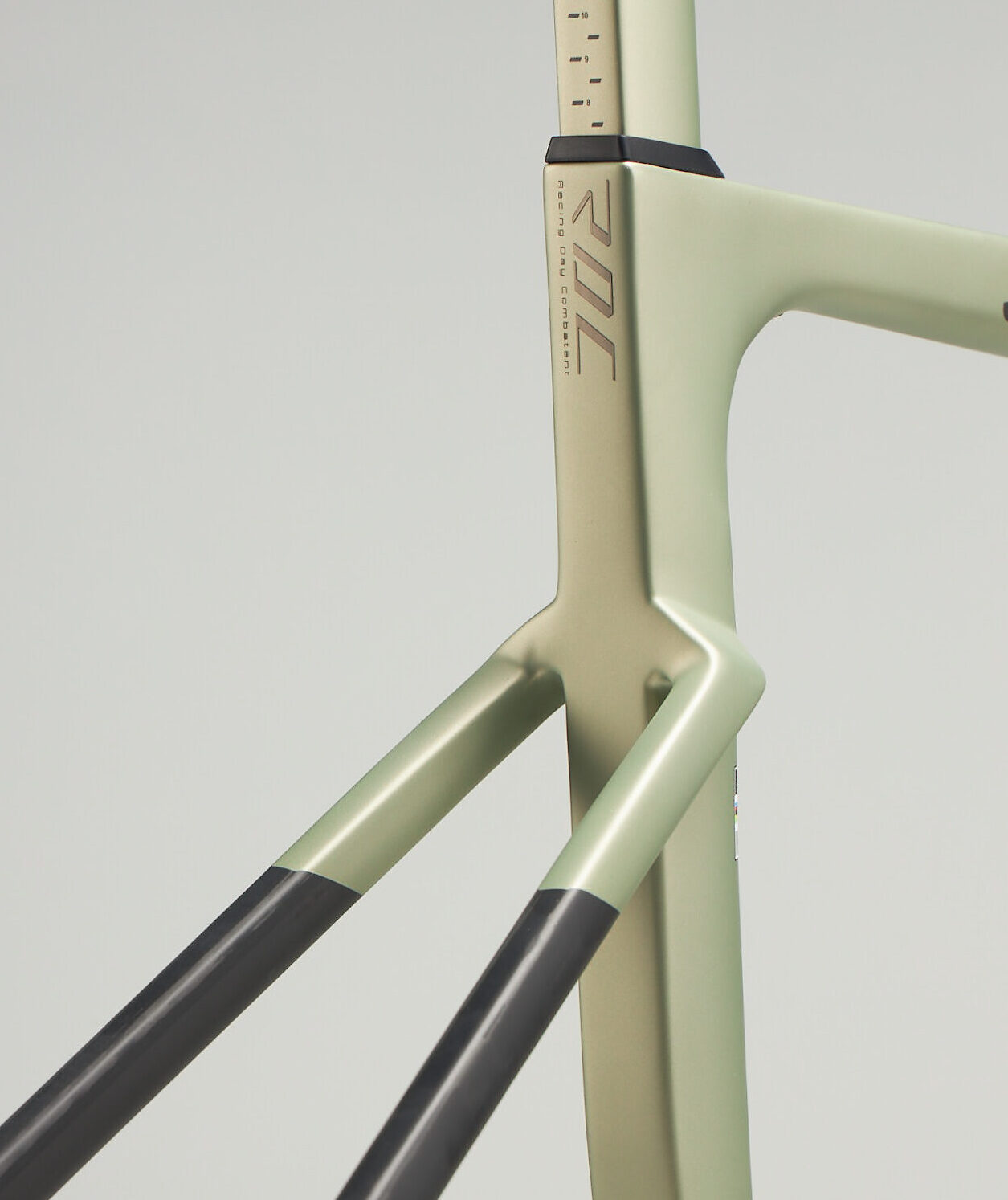

Seatpost
380mm or 300mm length 0mm or 15mm offset
UCI Approved
SEKA-EXCD FRAMESET · 44104
